Decoding the M.2 Interface

Understanding the M.2 Form Factor

Take a standard M.2 port on any modern motherboard: it is a physical gateway, yet it hides a silent complexity. The slot itself does not dictate performance, but the protocol negotiation between the drive and the controller does. Many buyers ask will nvme work in m.2 slot, and the answer lies in the key notch and the wiring beneath the connector.

An M-key socket supports both PCIe and SATA signals. A B-key socket is often limited to SATA or older PCIe revisions. Before you purchase, check the motherboard manual; that is where compatibility lives.

• Confirm the key type, B or M
• Identify the PCIe generation
• Check for an NVMe option in the BIOS

Only then will the drive spin into life without complaint.

Physical Sizes: 2230 to 22110

Hold a 2230 drive beside a 22110 and the difference is plain. One fits inside a compact chassis with room to spare; the other spans nearly the entire motherboard edge. Yet the interface between them is the same set of gold fingers, the same key notches, the same silent negotiation of signals. The length is a matter of capacity, not compatibility.

So when you ask will nvme work in m.2 slot, the answer starts with the screw holes. Motherboards accommodate a range of lengths, usually including:

• 2230 for handheld consoles and small form factor builds
• 2280 for most retail motherboards
• 22110 for server-class drives with extended controllers

The gap between standoffs is the true boundary. A longer drive in a shorter slot leaves the controller dangling, and the question will nvme work in m.2 slot is answered as much by the ruler as by the BIOS.

Differentiating M.2 Slots on Motherboards

Every M.2 slot has a predetermined capacity for speed, and the notches decide the boundary. B-key and M-key are the two configurations etched into the connector, and a drive’s gold fingers must align with one of them. Some slots accept either key, while others commit to a single dialect. The question will nvme work in m.2 slot comes down to those grooves: an M-key slot negotiates PCIe lanes, the direct lane for NVMe traffic. A B-key slot often defaults to the older SATA protocol. The drive carries the speed, but the slot sets the path. I’ve learned to read these notches before anything else!

Here is what to check when you inspect a motherboard:

– The position of the notch on the connector itself
– The number of PCIe lanes routed to that specific port
– Any printed labels near the slot that mention PCIe or SATA

NVMe vs. SATA: Bus Protocol Differences

How PCIe Lanes Enable NVMe Speed

Will nvme work in m.2 slot hinges on the bus protocol, not the connector shape. SATA drives use the AHCI protocol, a legacy standard built for spinning platters, which limits command queue depth. NVMe drives use a protocol engineered for flash memory, handling thousands of outstanding commands simultaneously.

PCIe lanes carry that speed. An NVMe drive typically reserves four lanes for a direct pathway to the CPU, pushing sequential reads past 3,000 MB/s in most consumer boards. A SATA M.2 drive peaks near 550 MB/s. When you check your motherboard manual, look for the chipset PCIe allocation to confirm which protocol your slot supports.

AHCI vs. NVMe: A Protocol Comparison

Here is what most motherboard manuals will not tell you. The M.2 slot on your board may physically accept an NVMe drive, but the protocol controller decides what happens next. AHCI, the older standard, was built for spinning platters in 2004. It manages commands in a single queue, only 32 deep. NVMe scales to 65,535 queues with 65,535 commands each. That is not a small improvement. It is a fundamental change in how storage handles workload.

• AHCI: one queue, 32 commands, designed for mechanical hard drives.
• NVMe: thousands of queues, thousands of commands, designed for flash memory.

When someone asks will nvme work in m.2 slot, the accurate answer is: it depends on the controller, not the connector. I have plugged drives into slots that recognised them but ran them at SATA speeds, because the board never enabled the NVMe protocol. The slot shape never changes. The protocol decides your real-world speed.

Real-World Bandwidth Limits

SATA’s 6 Gb/s interface yields about 550 MB/s real world. NVMe uses the PCIe bus, where a single x4 link on PCIe 3.0 delivers 3,500 MB/s. The question will nvme work in m.2 slot depends on which bus the slot actually wires to. Some M.2 slots connect only SATA lines. Others share PCIe lanes with the chipset. Always verify the lane allocation. Consider the practical bandwidth differences:

• SATA M.2: 550 MB/s maximum
• NVMe M.2: up to 3,500 MB/s on PCIe 3.0 x4
• PCIe 4.0 x4: 7,000 MB/s

Real world latency drops from milliseconds to microseconds. That gap defines everyday responsiveness.

Hardware Compatibility Checkpoints

Checking Motherboard Slot Specifications

Five minutes with your motherboard manual saves hours of frustration. The answer to will nvme work in m.2 slot depends entirely on the board’s spec sheet. Physical fit means little without electrical compatibility. The slot must carry PCIe lanes wired directly to the CPU or chipset.

I have seen builders in Johannesburg pair a Gen4 NVMe drive with a Gen3 slot. It works, but it caps at the slower speed. A Gen3 drive in a Gen4 slot runs fine, yet some boards disable a SATA port when the M.2 slot is occupied.

Check the manual for lane allocation:

• SATA or PCIe designation beside the slot
• Key M versus Key B compatibility
• PCIe generation and lane count in the spec sheet

The silkscreen text near the slot usually states whether it supports NVMe. That printed detail removes all guesswork!

Compatibility with Different Key Types

Here is where the will nvme work in m.2 slot question gets properly awkward. The key, that little notch on the gold connector, decides physical allegiance. Key M fits most NVMe drives. Key B belongs to the older SATA-based M.2 generation. A Key B socket will not accept a Key M drive, and forcing it bends pins.

Check the edge connector notches:

• One notch: Key B
• Two notches: Key M

Some boards offer only Key M, some support both. That distinction saves you from a frustrating return to the store.

PCIe Generation Support and Backward Compatibility

PCIe generation support sounds like a compatibility nightmare, but it is refreshingly simple. Gen4, Gen5, and Gen6 slots exist in the wild. The question of will nvme work in m.2 slot across these generations has a short answer: yes. Backward compatibility is built into the specification. A Gen5 NVMe drive negotiates its speed down to match a Gen4 or Gen3 slot. The drive will not break or refuse to cooperate. It simply operates at the slot’s maximum generation.

• Gen3 slots cap NVMe throughput near 3500 MB/s
• Gen4 slots allow around 7000 MB/s
• Gen5 slots push beyond 12000 MB/s

The physical connector stays identical across generations. The motherboard chipset sets the ceiling, not the drive. So if you are in Cape Town asking will nvme work in m.2 slot with an older generation, the hardware will cooperate. Your performance expectations must shift accordingly.

The Impact of Shared Lanes with Other Devices

Hardware compatibility is no abstraction. The question of will nvme work in m.2 slot is settled by physical checkpoints before power reaches the drive. The key notch must match the drive’s keying, usually M. The screw hole must match drive length.

• Key notch alignment decides if the drive seats
• Screw hole position fixes the angle
• Standoff clearance prevents short circuits

Mismatch leaves the drive loose, contacts misaligned, a silent failure waiting to manifest.

Shared lanes complicate matters. Many motherboards route M.2 bandwidth through the chipset, which also serves SATA and PCIe slots. Populate two devices on the same lane pool and negotiation begins. Some boards disable a SATA port when an M.2 drive occupies the slot. Others drop a PCIe x16 slot to x8. The manual documents these collisions, though few consult it. So will nvme work in m.2 slot under contention? Often yes, though with reduced bandwidth or disabled ports.

Clearing Physical Obstructions and Heat Sinks

The physical environment around the slot matters more than the electrical one. A heat sink that is too thick can press against the graphics card, bending the drive. The question will nvme work in m.2 slot when the chassis panel bulges? It might, but at a cost. Standoff height dictates how much space sits beneath the drive. Some heatsinks use clips that interfere with neighboring memory slots. Check the drive’s single-sided or double-sided construction. Double-sided SSDs sit higher and may hit a low-clearance heatsink. The answer to will nvme work in m.2 slot relies on measuring the gap between the top of the drive and any obstruction. Airflow also drops with tight fits, raising temperatures under sustained writes. A drive that throttles still works, but it no longer performs at spec.

System Firmware and Operating System Support

Updating BIOS for NVMe Recognition

Even after you confirm the physical fit and key type, the firmware may not cooperate. Some older motherboards shipped without NVMe support included in the BIOS. A firmware update often fixes this, and the process is simpler than most people think. I have seen machines from 2015 suddenly recognise a modern NVMe drive after a quick flash.

The honest answer to will nvme work in m.2 slot often lives in the UEFI release notes. Check the motherboard manufacturer’s support page for your specific model.

– Look for NVMe or storage improvements in the BIOS changelog
– Download the latest firmware to a USB stick
– Follow the flashing instructions carefully

Your operating system matters here too! Windows 10 and 11 load the NVMe driver automatically, and Linux kernels include the nvme module by default. Once the firmware and OS both recognise the drive, the question of will nvme work in m.2 slot resolves itself.

UEFI vs. Legacy Boot Modes

Your motherboard’s legacy BIOS mode predates NVMe by a decade. In that mode, the system uses the Master Boot Record to find storage, and MBR simply has no instruction set for PCIe-based NVMe drives. UEFI, the modern replacement, includes an NVMe driver inside the firmware, so booting becomes possible. So, will nvme work in m.2 slot? Only if you disable Compatibility Support Module, or CSM, and switch to UEFI mode.

Operating systems matter too. Windows 10 and 11 load NVMe drivers automatically, and Linux includes it by default. However, if your OS was installed under legacy BIOS, the boot loader cannot switch without reinstalling. UEFI mode is the only path forward for NVMe boot.

Windows and Linux NVMe Driver Considerations

Firmware alone cannot make a drive bootable. The operating system must contain the right NVMe drivers. Without them, your M.2 slot may recognise the drive yet fail to boot from it. So, will nvme work in m.2 slot? It depends on how current your OS is.

Consider the driver situation:

• Windows 10 and 11 include native NVMe support in the install image. The drivers load automatically.
• Windows 7 needs a separate driver slipped into the installer, a tedious process.
• Linux kernels above 3.3 include NVMe support by default. Older enterprise distributions may need manual driver loading.

The firmware hands off to the OS after the bootloader runs. If that OS lacks NVMe awareness, the handoff fails. System firmware and OS must cooperate, otherwise that M.2 slot stays empty.

Securing Boot and TPM Requirements

Firmware handoff is not the final hurdle. Modern motherboards enforce a security check before they trust any storage device. So, will nvme work in m.2 slot when Secure Boot and TPM are active? It can, but the drive must pass inspection. Secure Boot rejects unsigned NVMe controllers, while TPM 2.0 verifies the platform state. Your BIOS must have both features enabled, not merely present.

The firmware checks three things:

• Secure Boot demands UEFI firmware with a valid key database.
• TPM 2.0 must be switched on, often buried in the Trusted Computing section.
• The NVMe drive needs a signed option ROM or the handshake fails.

Without these, the M.2 slot remains inactive. The drive powers up, but the boot manager never sees it. That is precisely why the question, will nvme work in m.2 slot, hinges on firmware security posture, beyond the physical connector.

Practical Installation and Performance Validation

Step-by-Step NVMe Drive Installation

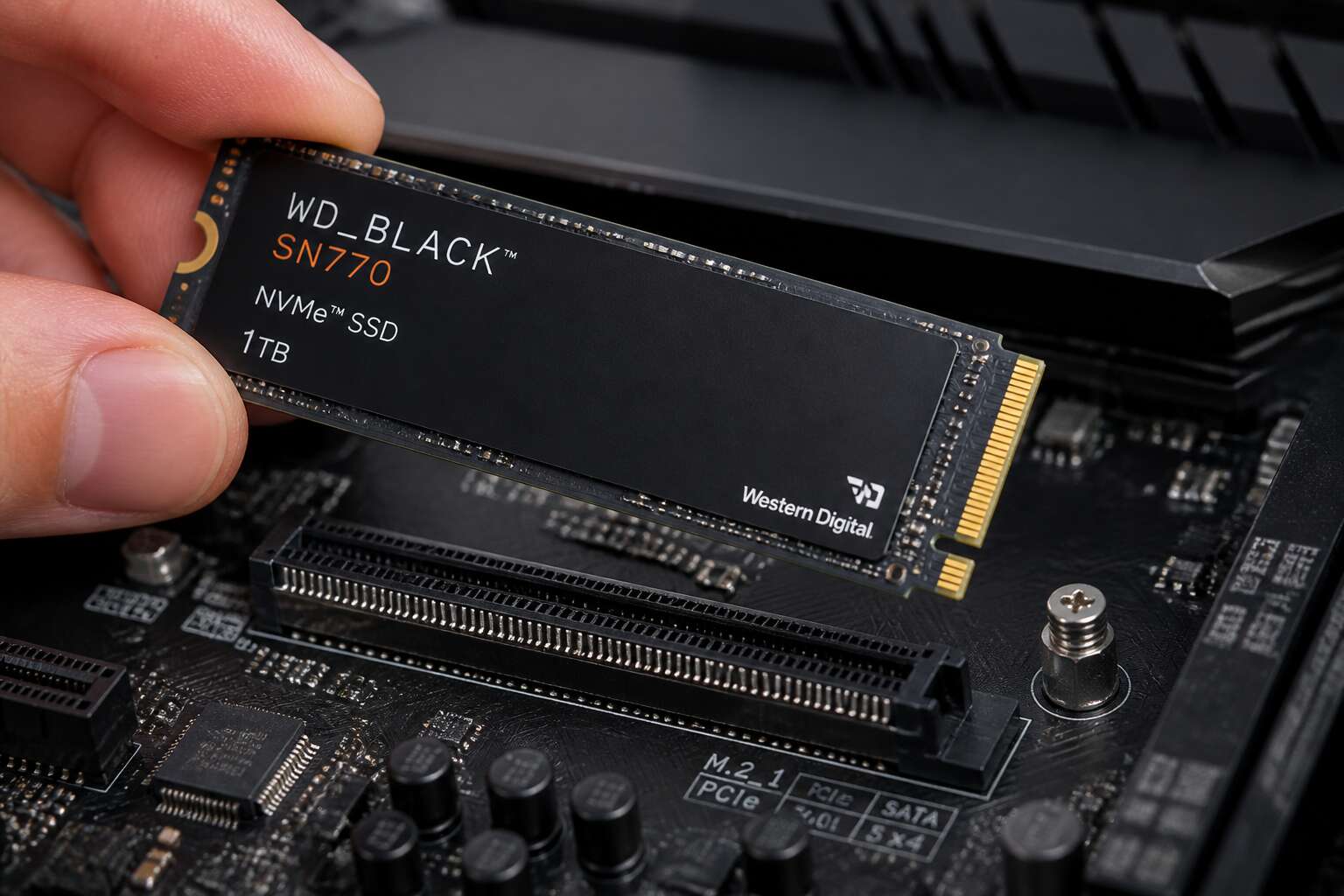

Will nvme work in m.2 slot? Once the slot matches the drive’s key and PCIe generation, installation is simple. Power down, then locate the M.2 slot. Gently lift the standoff, insert the drive at an angle, and secure it. No special tools are needed beyond a screwdriver.

After booting, check your UEFI to see if the drive is recognised. Then initialize it in Disk Management or with fdisk. Run a quick benchmark like CrystalDiskMark to confirm NVMe speeds. A reliable validation order is:

1. Insert the drive at an angle.
2. Secure with the standoff screw.
3. Boot and verify in BIOS.
4. Initialize and format.
5. Benchmark and compare.

This practical approach gives you a stable, fast boot drive.

Initializing and Partitioning New Storage

Windows greets your new NVMe drive with a curt “Unknown, Not Initialized.” That is not a compliment. You must initialise the disk in Disk Management or fdisk before it accepts anything. For South African builders, the question of will nvme work in m.2 slot becomes a question of whether you set up the volume properly.

The workflow is short:

1. Initialise the disk as GPT.
2. Create a partition.
3. Assign a drive letter.
4. Format with NTFS or ext4.

Benchmark after formatting, not before. CrystalDiskMark shows whether the PCIe lanes behave as promised. Synthetic scores can flatter, but real file transfers are less forgiving. If your drive copies several gigabytes without fuss, you are done. Trust me, that speed is the one you actually paid for!

Comparing Synthetic Benchmarks and Real-World Tasks

The moment a system posts, you discover the true answer to whether any particular drive will nvme work in m.2 slot. Boot time feels instantaneous because the firmware and OS loader engage the PCIe link immediately. Synthetic benchmarks provide a score, but they do not validate your daily workflow. I have seen drives that produce spectacular CrystalDiskMark numbers, yet stumble when copying a 50 GB project folder from an older SATA SSD.

Real-world validation demands a different approach. The transfer of mixed media files tests sustained write performance in a way that queue-depth one operations never will. A proper stress test involves duplicating large archives and then comparing the sequential copy times against published specifications. The differences become obvious when you watch the thermal throttling kick in during a 100 GB write.

Performance validation must also include these scenarios:
– Booting into a full desktop environment with all startup applications.
– Loading a large game level from a cold start.
– Running a database import or virtual machine migration.

Each task taxes the controller differently. If the drive sustains speed while the system remains responsive, the installation is correct. I have watched builds where the theoretical bandwidth never translates to real files because the heat sink was installed incorrectly. The question of will nvme work in m.2 slot always resolves into a practical, physical verification. The numbers matter, but the lived experience of fast, reliable file operations matters more.

Dealing with Overheating and Throttling

Overheating remains the silent adversary of every NVMe installation. When a drive throttles, the controller reduces speed to protect the silicon. This is where the question of will nvme work in m.2 slot becomes a matter of thermal management rather than connectivity.

I have measured drive temperatures exceeding 80 degrees Celsius under sustained load. The consequences are immediate: read speeds collapse, write speeds halve. A proper heat sink changes the narrative entirely. The best results come from direct airflow over the controller chip.

Consider these warning signs:

– Performance drops after several minutes of intensive operations.
– The drive case becomes too hot to touch.
– System logs report thermal throttling events.

Each symptom points to missing heat dissipation. The answer to will nvme work in m.2 slot depends on your cooling arrangement as much as the slot itself.
